Clinical Centrifuges – GYROZEN

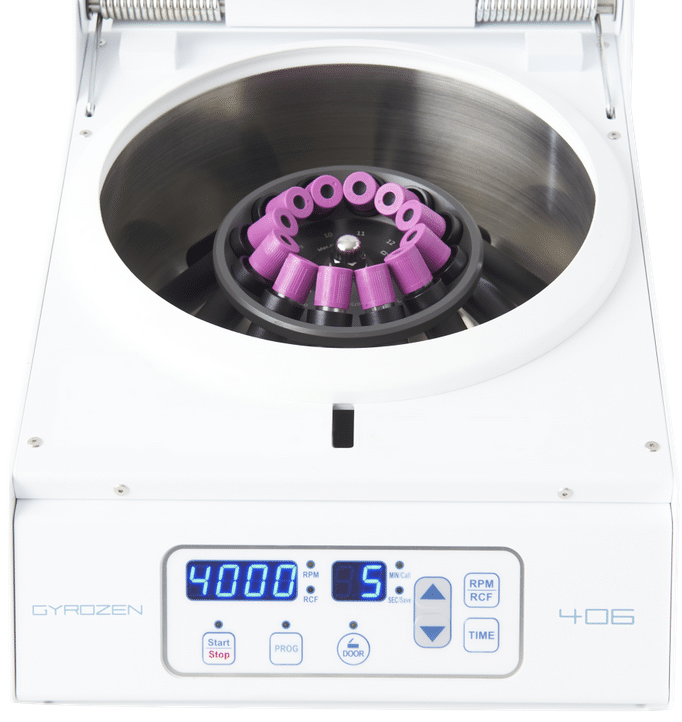

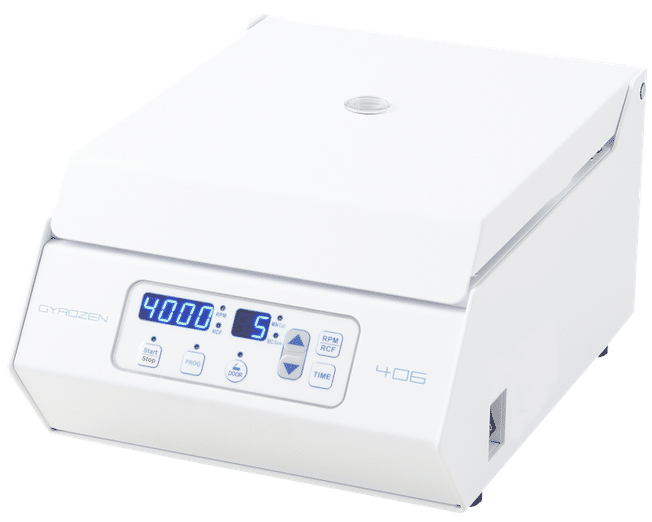

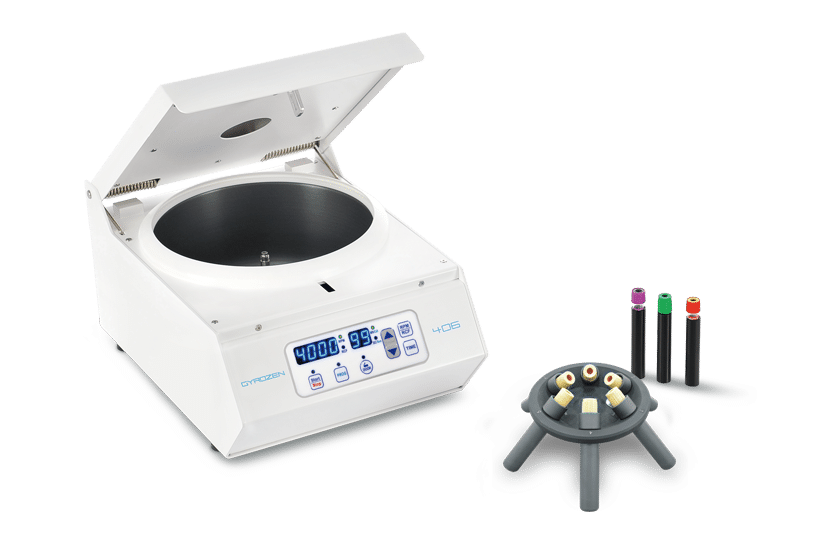

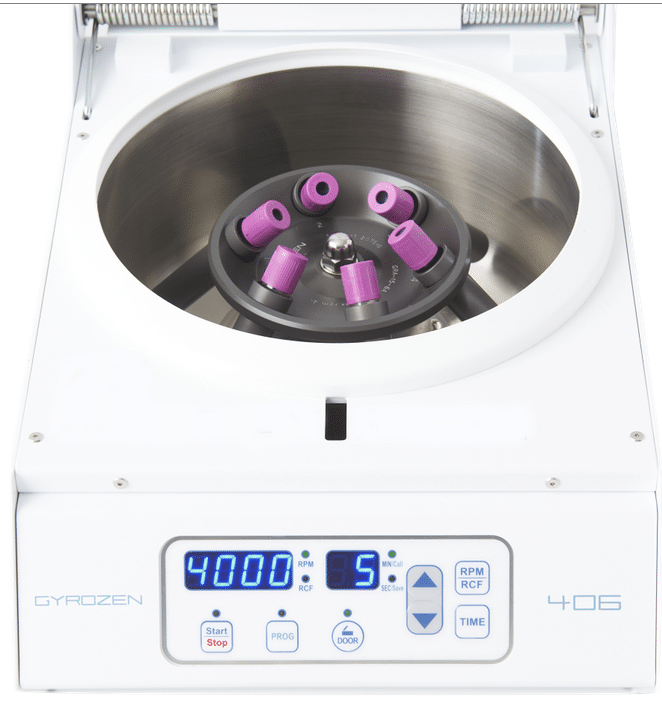

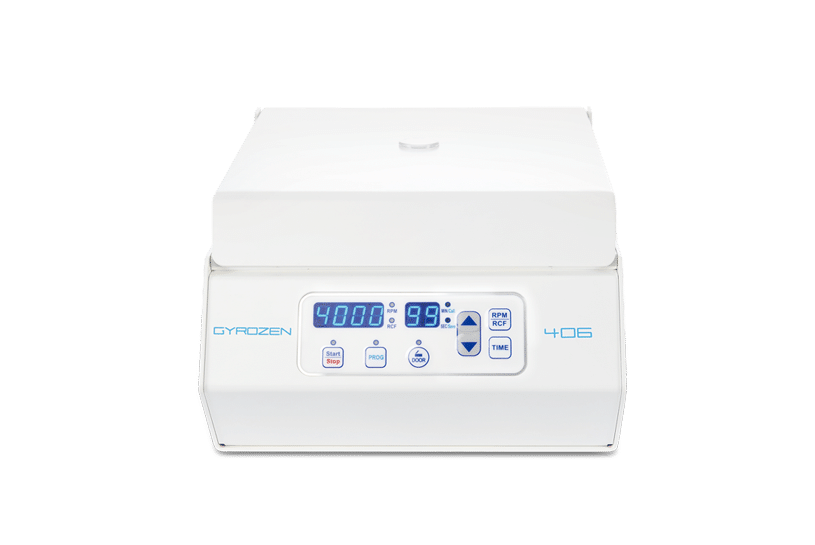

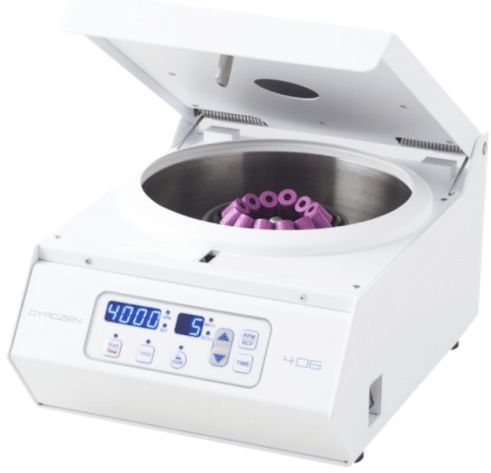

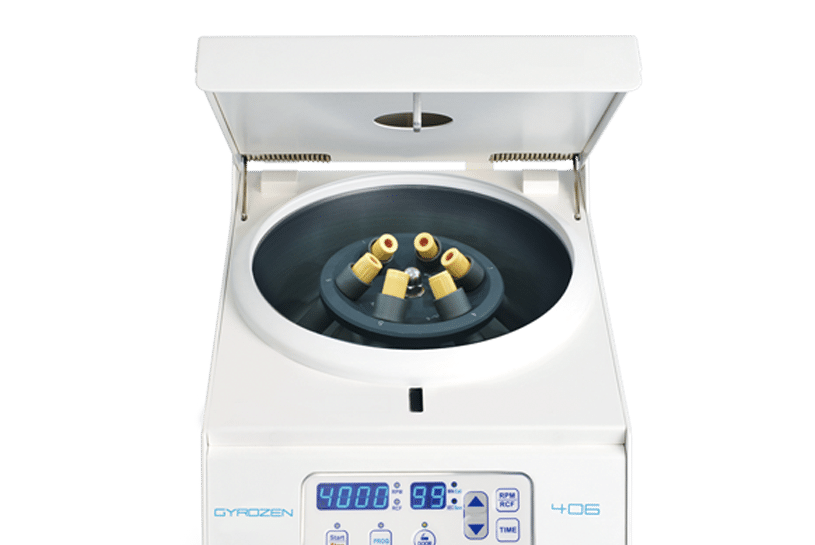

406
Max. capacity: 6 x 15 mL or 12 x 10 mL
Max Speed: 4,000 rpm
Max. RCF: 2,075 xg
Dimensions: 206(H)x296(W)x412(D) / mm

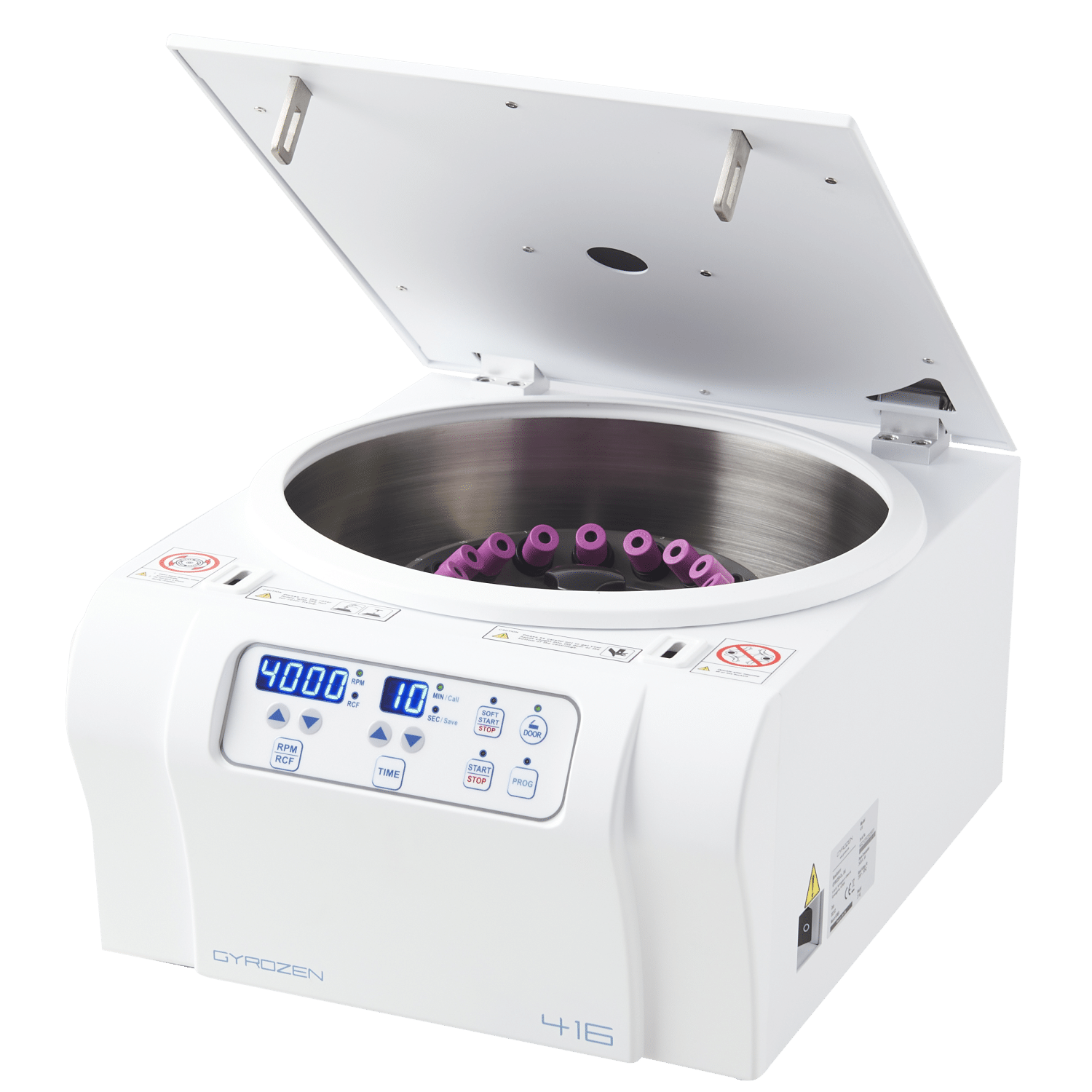

416
Max. capacity for Fixed Angle: 16 x 15 mL, 10 x 50 mL
Max. capacity for Swing Out: 4 x 100 mL, 4 x 8 vacutainer tube, 2 x 2 MTPs
Max Speed: 4000 rpm
Max. RCF for Fixed Angle: 2700 xg
Max. RCF for Swing Out: 2826 xg
Dimensions: 260(H)x375(W)x480(D) / mm

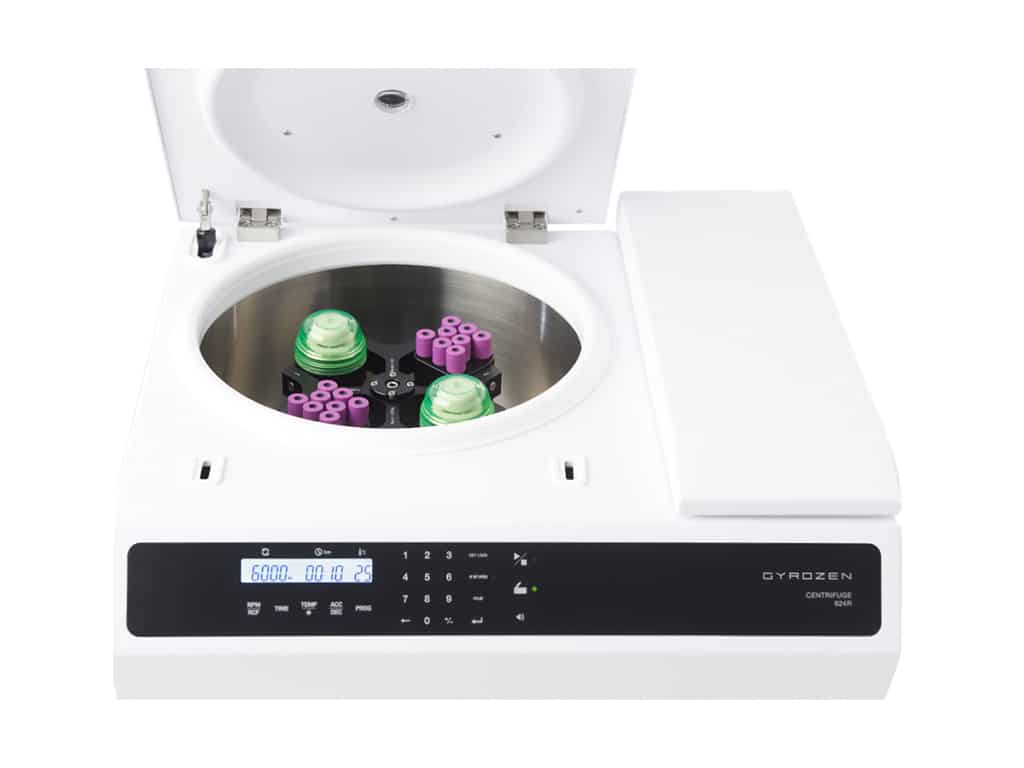

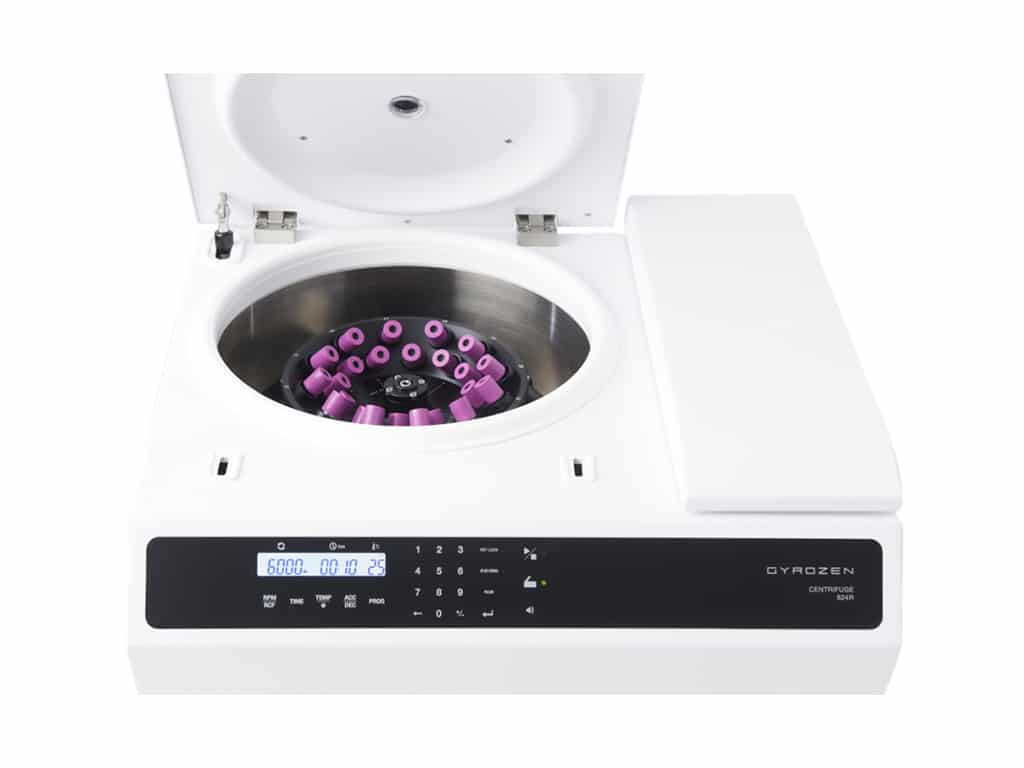

624R
Max. capacity for Fixed Angle: 6 x 50 mL
Max. capacity for Swing Out: 4 x 100 mL, 4 x 8 vacutainer tube, 2 x 2 MTPs
Max Speed for Fixed Angle: 6000 rpm
Max Speed for Swing Out: 4800 rpm
Max. RCF for Fixed Angle: 3960 xg
Max. RCF for Swing Out: 3888 xg
Dimensions: 317(H)x584(W)x535(D) / mm

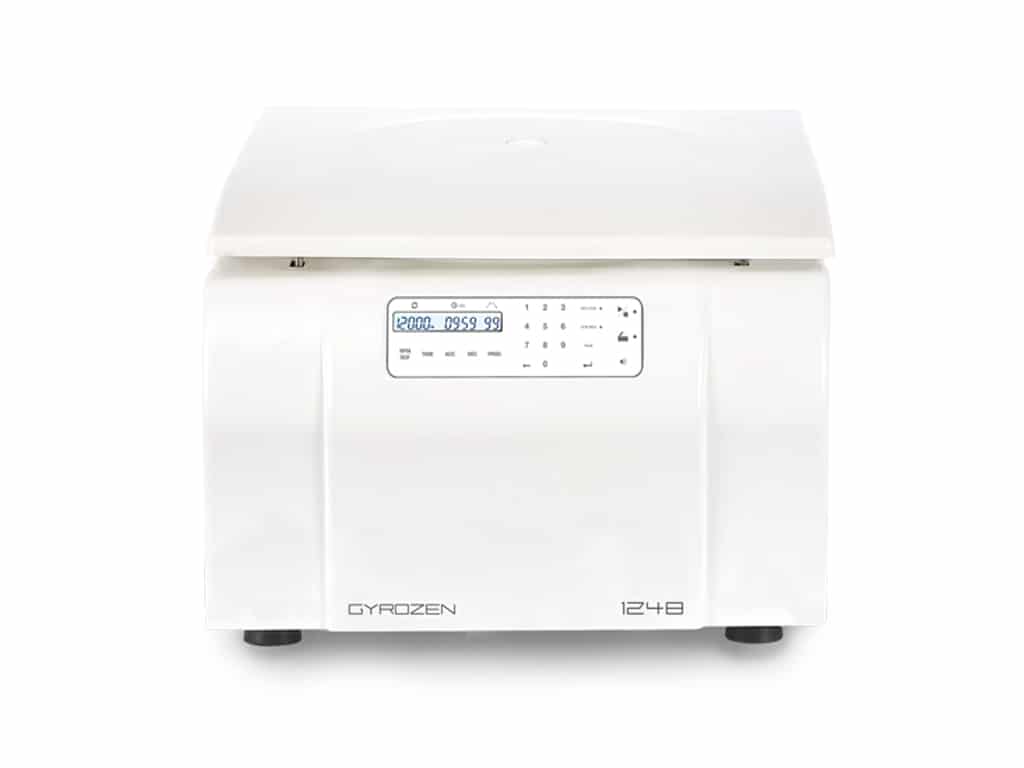

1248
Max. capacity for Fixed Angle: 6 x 85 mL, 30 x 1.5/2.0 mL
Max. capacity for Swing Out: 4 x 250 mL, 48 x 15 mL, 4 x 4 MTPs
Max Speed for Fixed Angle: 12,000 rpm
Max Speed for Swing Out: 5,000 rpm
Max. RCF for Fixed Angle: 16,582 xg
Max. RCF for Swing Out: 5,394 xg
Dimensions: 330(H)x475(W)x561(D) / mm

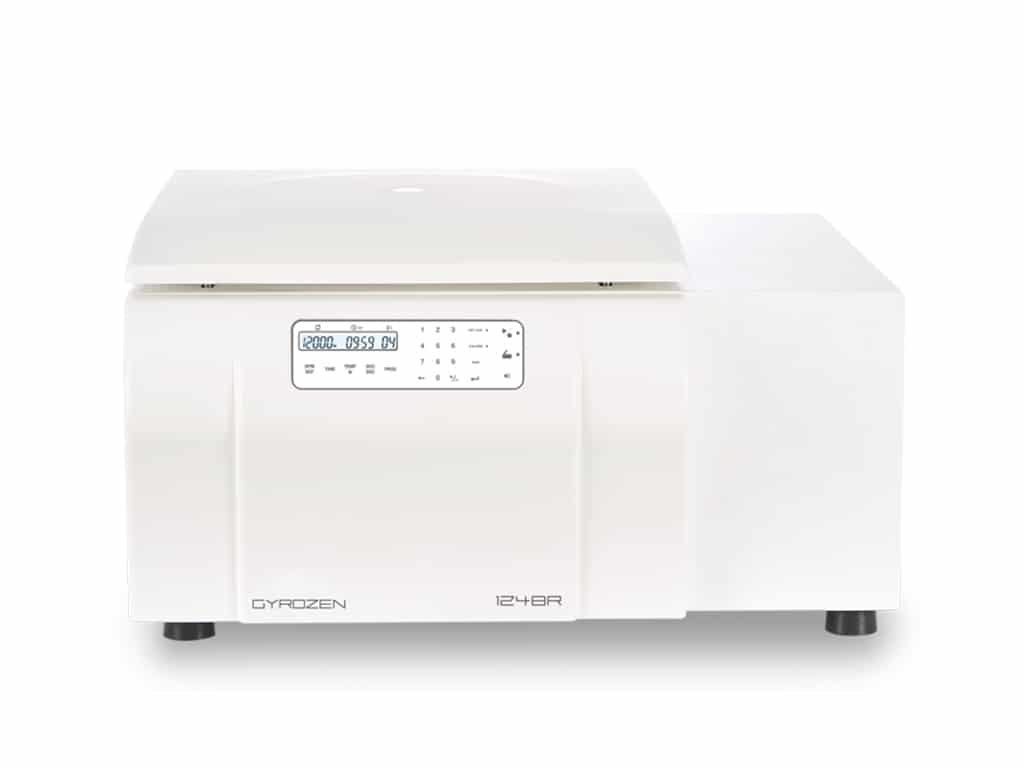

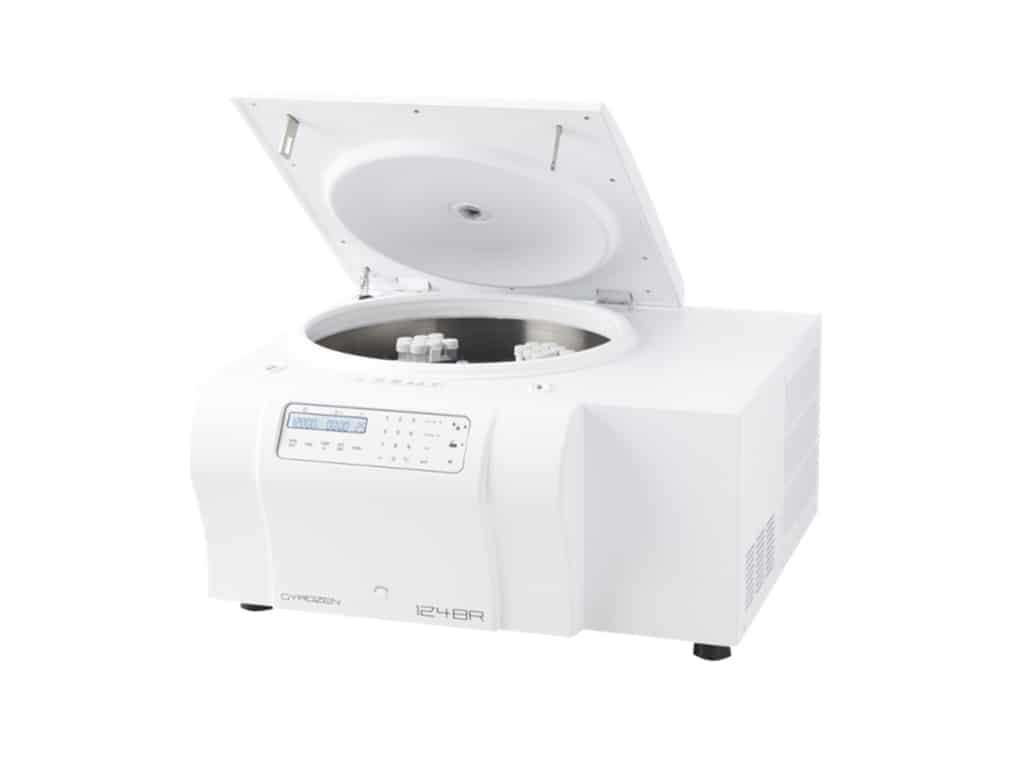

1248R
Max. capacity for Fixed Angle: 6 x 85 mL, 30 x 1.5/2.0 mL
Max. capacity for Swing Out: 4 x 250 mL, 48 x 15 mL, 4 x 4 MTPs
Max Speed for Fixed Angle: 12,000 rpm
Max Speed for Swing Out: 5,000 rpm
Max. RCF for Fixed Angle: 16,582 xg
Max. RCF for Swing Out: 5,394 xg
Dimensions: 357(H)x655(W)x620(D) / mm

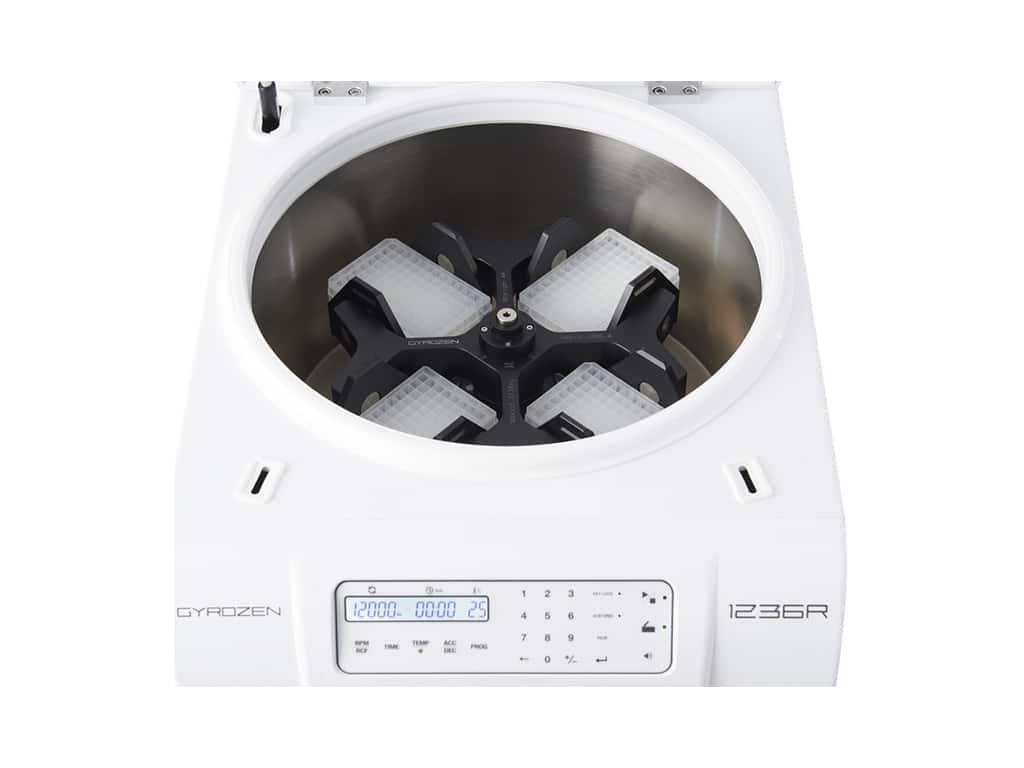

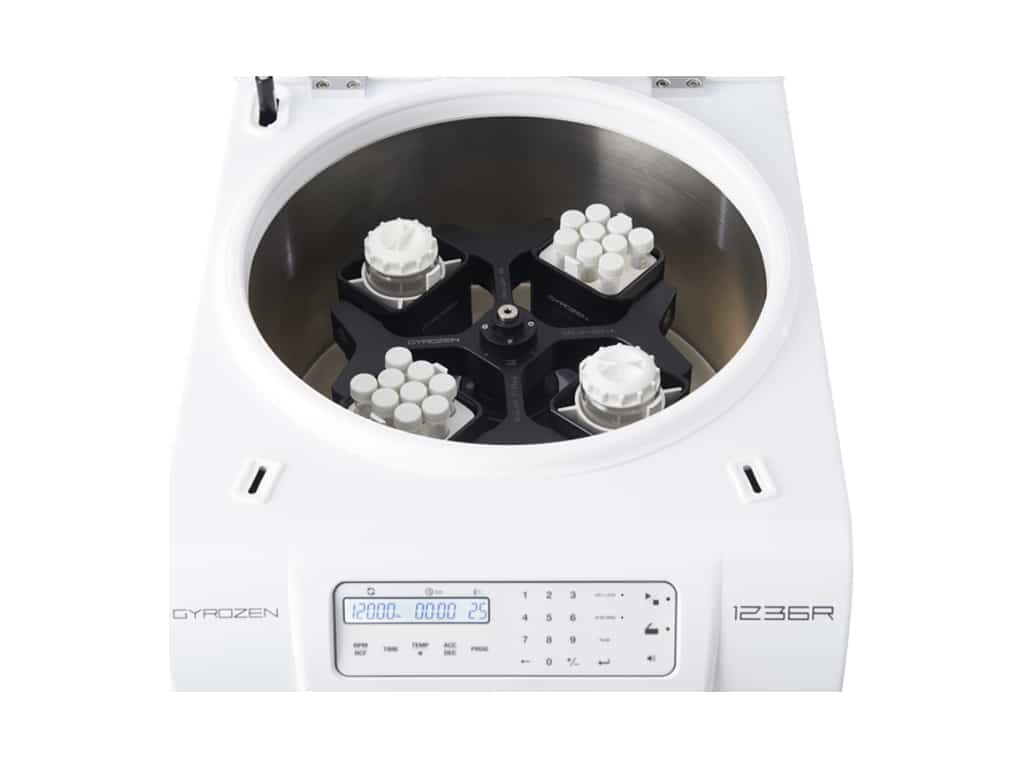

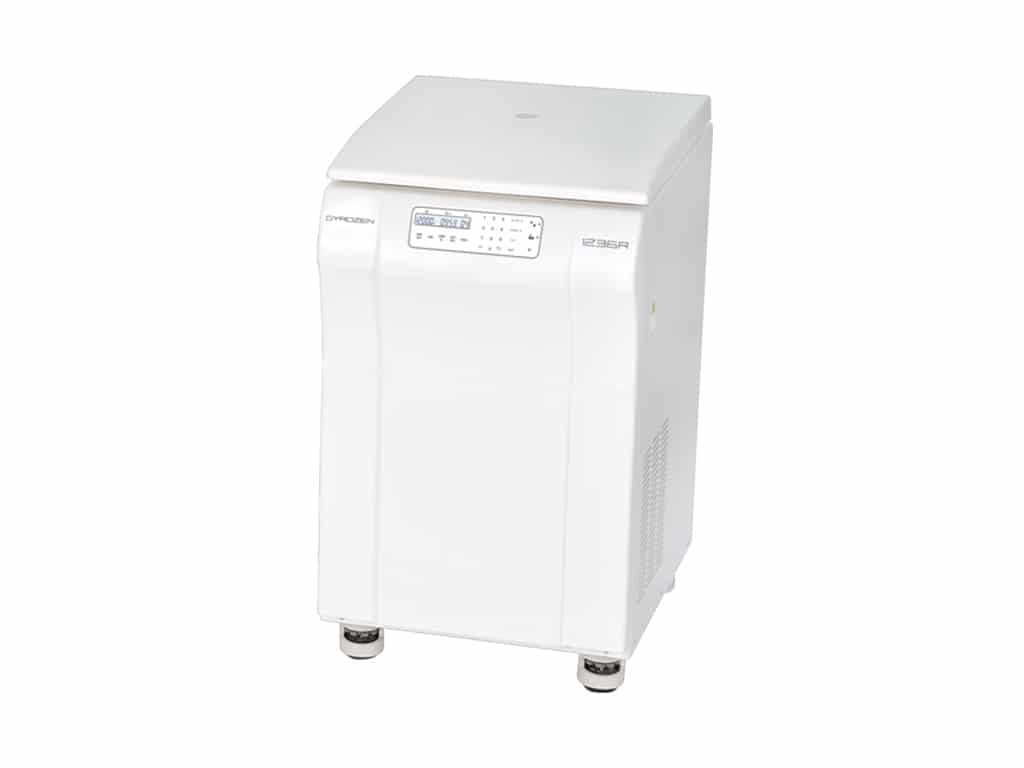

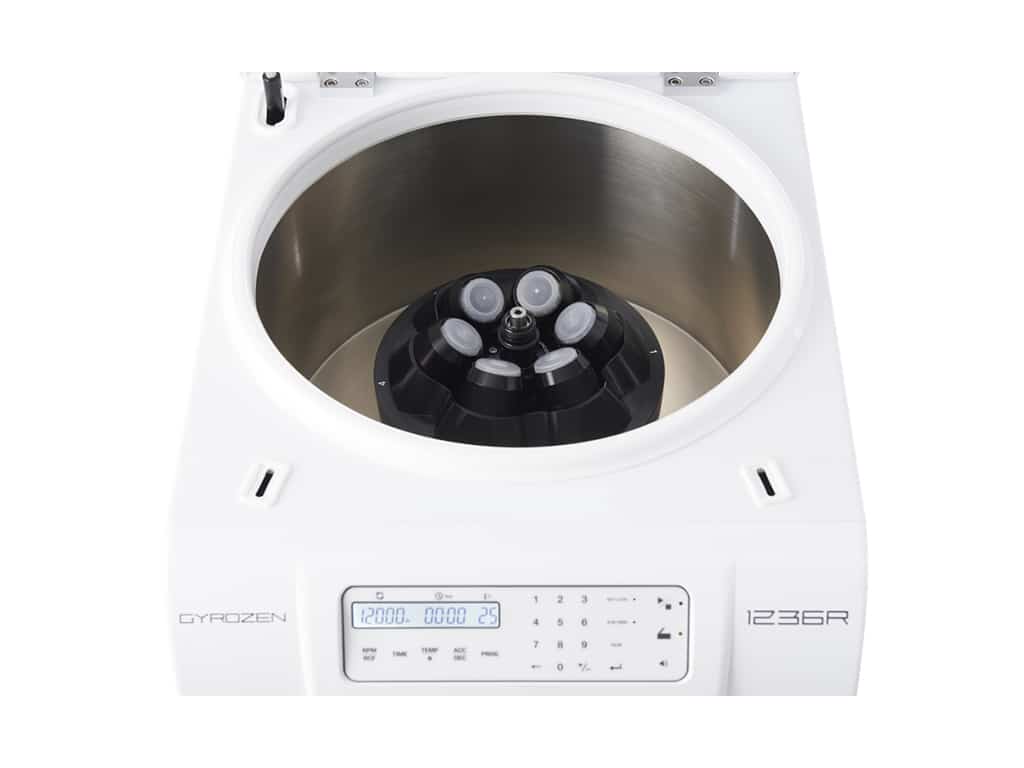

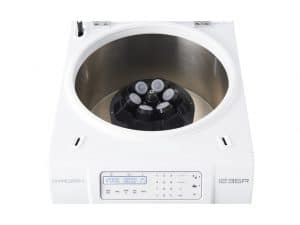

1236R
Max. capacity for Fixed Angle: 6 x 85 mL, 30 x 1.5/2.0 mL
Max. capacity for Swing Out: 4 x 250 mL, 4 x 12 x 15 mL, 4 x 4 MTPs
Max Speed for Fixed Angle: 12,000 rpm
Max Speed for Swing Out: 5,000 rpm
Max. RCF for Fixed Angle: 16,582 xg
Max. RCF for Swing Out: 5,394 xg
Dimensions: 830(H)x473(W)x620(D) / mm

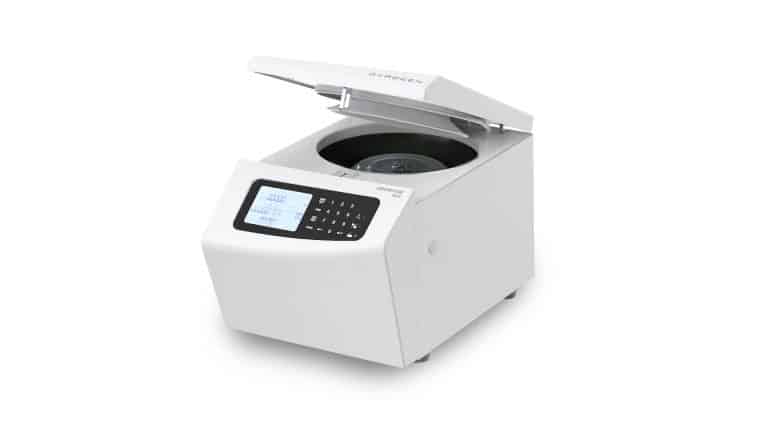

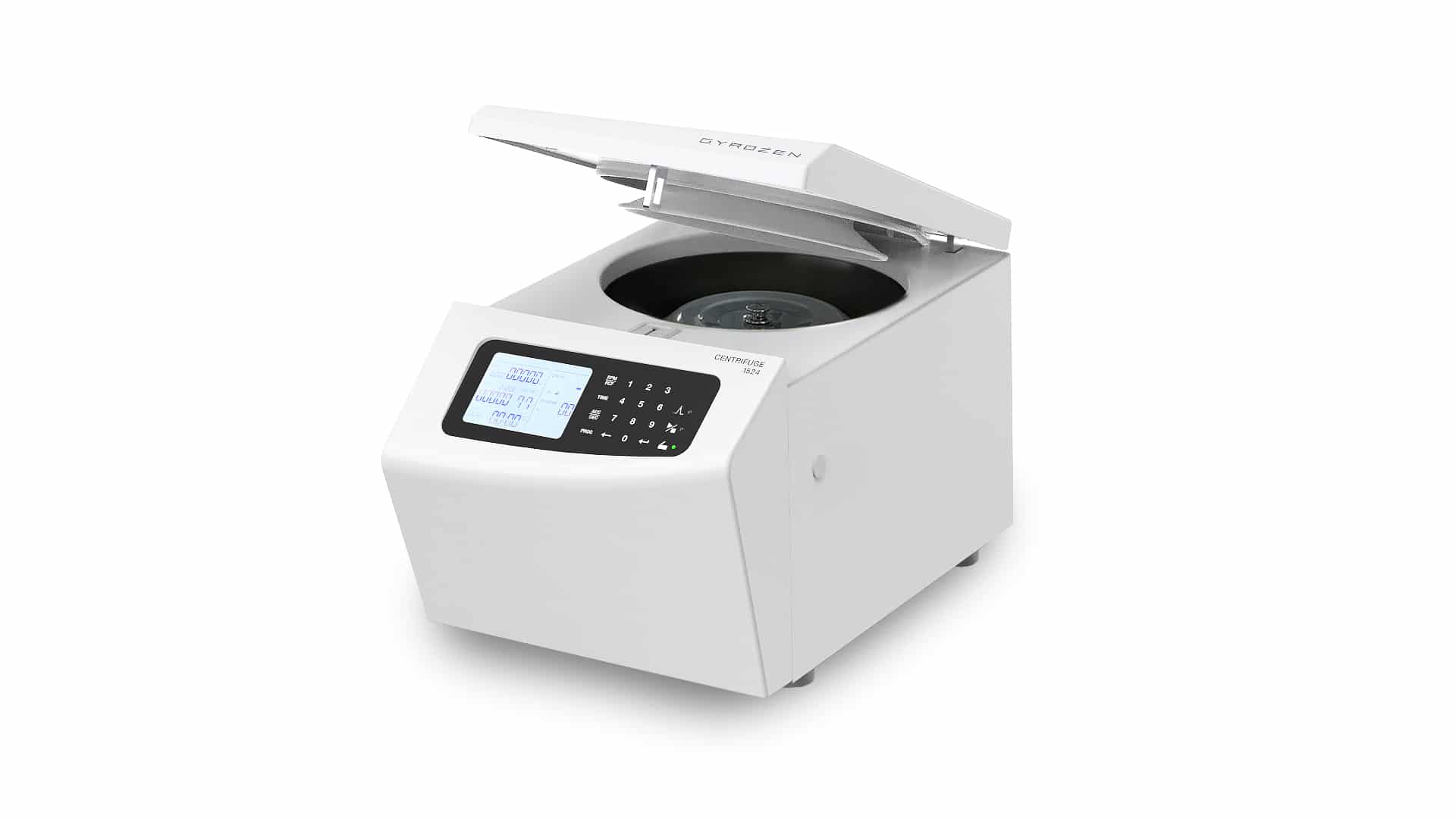

Microcentrifuge model 1524
Max. capacity: 24 x 1.5 / 2.0 mL
Max. Speed: 15,000 rpm
Max. RCF: 21,206 xg
Dimensions: 240(H)x240(W)x378(D) / mm

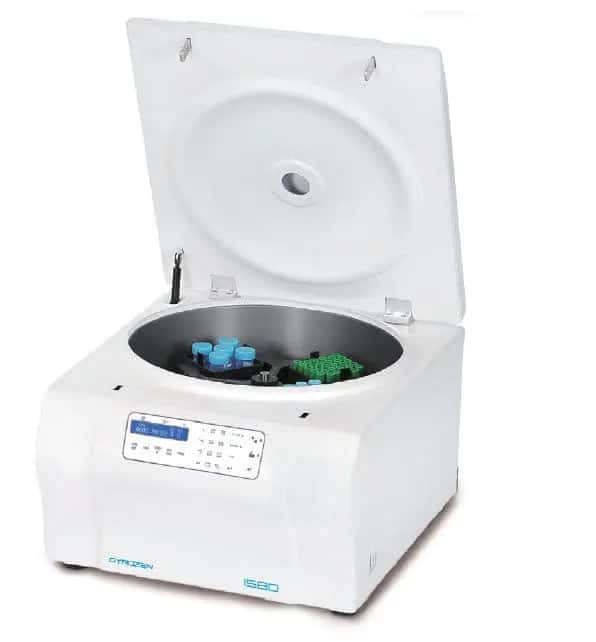

1580
Max. capacity for Fixed Angle: 6 x 85 mL, 30 x 1.5/2.0 mL
Max. capacity for Swing Out: 4 x 750 mL, 80 x 15 mL, 4 x 4 MTPs
Max Speed for Fixed Angle: 15,000 rpm
Max Speed for Swing Out: 5,000 rpm
Max. RCF for Fixed Angle: 24,249 xg
Max. RCF for Swing Out: 5,394 xg
Dimensions: 380(H)x540(W)x650(D) / mm
1580R
Max. capacity for Fixed Angle: 6 x (250 & 15) mL, 30 x 1.5/2.0 mL
Max. capacity for Swing Out: 4 x 750 mL, 80 x 15 mL, 4 x 4 MTPs
Max Speed for Fixed Angle: 15,000 rpm
Max Speed for Swing Out: 5,000 rpm
Max. RCF for Fixed Angle: 25,910 xg
Max. RCF for Swing Out: 5,394 xg
Dimensions: 390(H)x770(W)x650(D) / mm

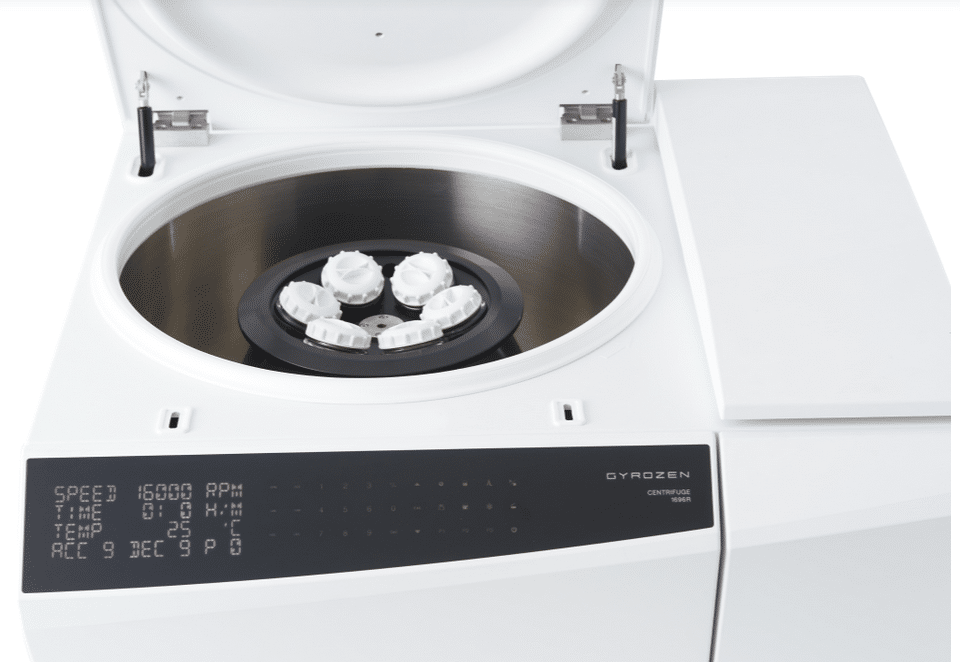

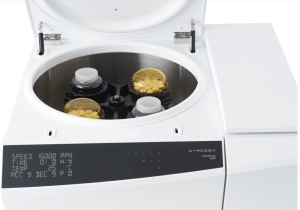

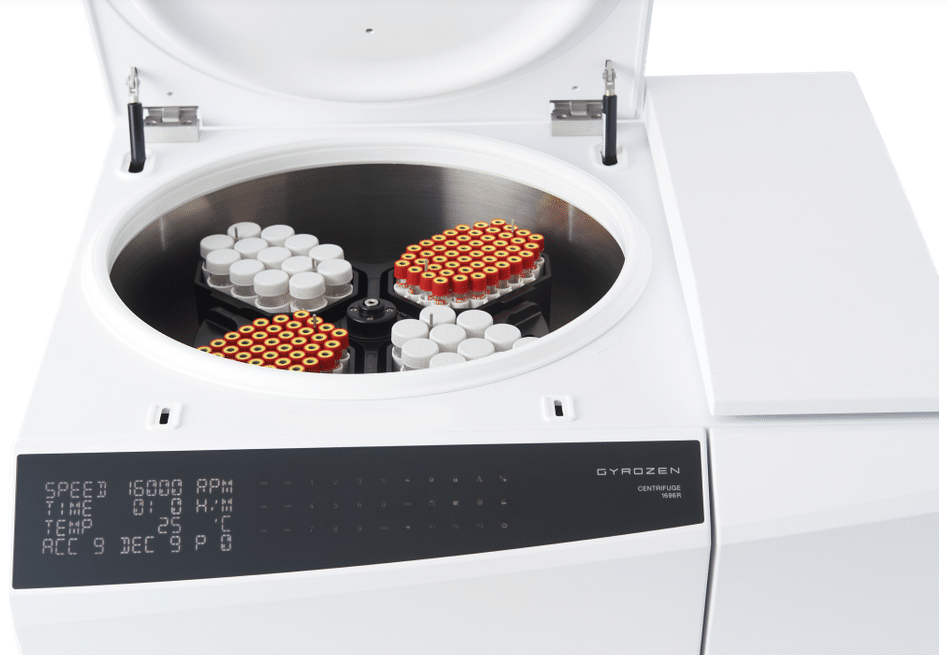

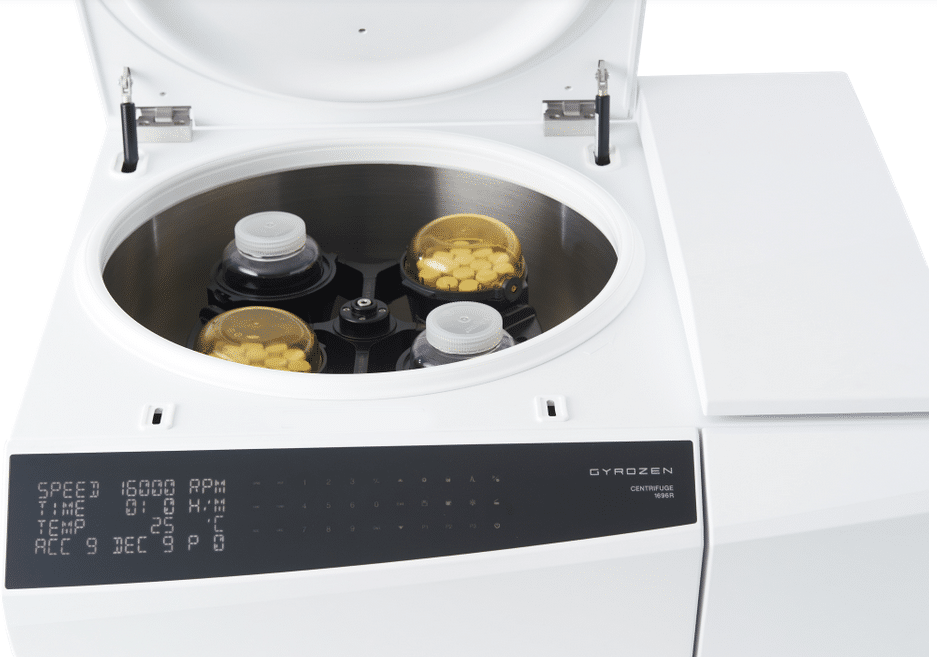

1696R
Max. capacity for Fixed Angle: 6 x 250 mL, 8 x 50 mL, 20 x 5.0 mL conical, 48 x 2.0 mL
Max. capacity for Swing Out: 4 x 1000 mL, 4 x 5 MTPs
Max Speed for Fixed Angle: 16,000 rpm
Max Speed for Swing Out: 5,000 rpm
Max. RCF for Fixed Angle: 27,590 xg
Max. RCF for Swing Out: 5,394 xg
Dimensions: 395(H)x775(W)x695(D) / mm
T05R
Max. capacity for Fixed Angle: 10 x 50 mL / conical 50 mL, 24 x 15 mL
Max. capacity for Swing Out: 4 x 100 mL, 4 x 2 x conical 50 mL, 4 x 8 vacutainer tubes, 2 x 2 MTPs
Max Speed: 5,000 rpm
Max. RCF for Fixed Angle: 3,983 x g
Max. RCF for Swing Out: 4,218 x g
Dimensions: 317(H)x584(W)x551(D) / mm

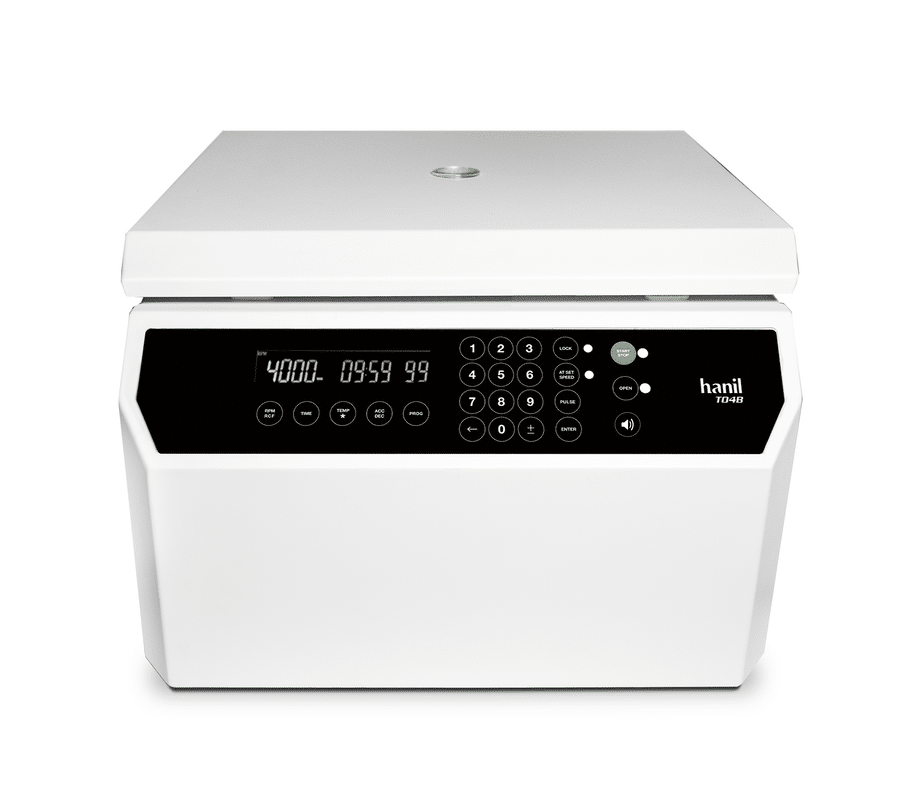

T04B
Max. capacity for Fixed Angle: 10 x 50 mL / conical 50 mL, 24 x 15 mL
Max. capacity for Swing Out: 4 x 100 mL, 4 x 2 x conical 50 mL, 4 x 8 vacutainer tubes, 2 x 2 MTPs
Max Speed: 4,000 rpm
Max. RCF for Fixed Angle: 2,773 x g
Max. RCF for Swing Out: 2,774 x g
Dimensions: 264.5(H)x375(W)x507(D) / mm
T04
Max. capacity for Fixed Angle: 12 x 15 or 10 mL (6 x c15 mL)
Max Speed: 4,000 rpm
Max. RCF: 2,075 x g
Dimensions: 211(H)x296(W)x408(D) / mm

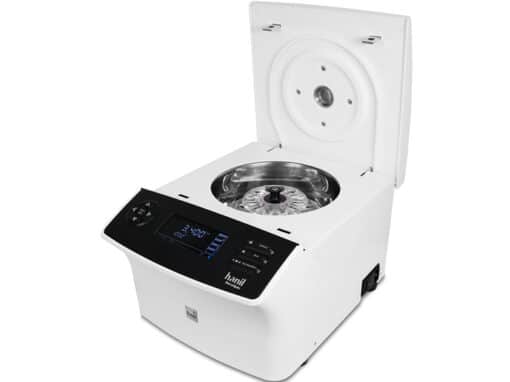

SeroSpin II
Max. capacity : 12 x 75 mm tube
Max Speed: 3,400 rpm
Max. RCF: 1,118 xg
Dimensions: 242(H)x293(W)x380(D) / mm

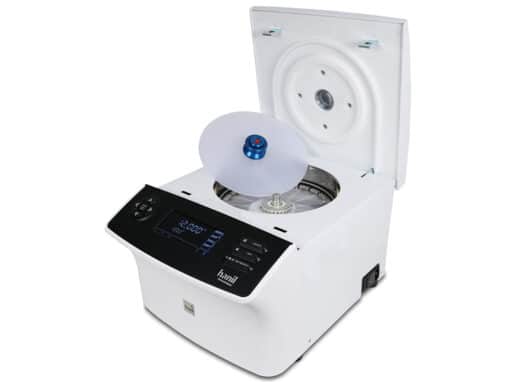

HematoSpin
Max. capacity : 24 x 0.07 mL capillary
Max Speed: 12,000 rpm
Max. RCF: 15,536 xg
Dimensions: 242(H)x293(W)x380(D) / mm

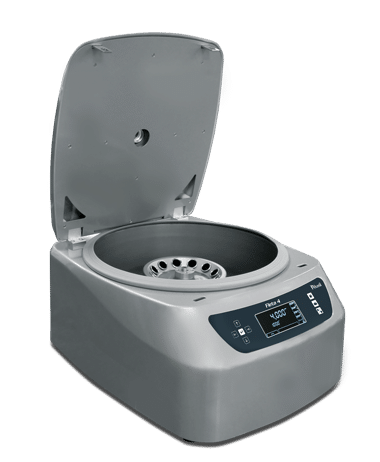

Fleta 4
Max. capacity for Fixed Angle: 24 x 15 mL
Max. capacity for Swing Out: 6 x 50 mL, 12 x 15 mL conical, 4 x 85 mL
Max Speed: 4,000 rpm
Max. RCF for Fixed Angle: 2,635 x g
Max. RCF for Swing Out: 3,243 x g
Dimensions: 286(H)x448.5(W)x531(D) / mm
Combi 508
Max. capacity: 3,000 ml
Max Speed: 8,000 rpm
Max. RCF: 8,279xg
Dimensions: 400(H)x530(W)x676(D) / mm
Combi 515R
Max. capacity: 3,000 ml
Max Speed: 15,000 rpm
Max. RCF: 26,664xg
Dimensions:
387(H)x723(W)x665(D) / mm
Temperature range: -10°C –
+40°C
