Categories
Magnetic Stirrers
2mag magnetic stirrers
2mag specializes in the production of magnetic stirrers that are suitable for various applications and for mixing a wide variety of liquids, from micro-liters up to 1000 liters.
The uniqueness of these stirrers is characterized by the fact that they have no mechanical elements.
The stirrers are made of high quality stainless steel and materials that are resistant to acids and liquids.
In addition, they have precise RPM control that includes the ability to control the rotational force and thereby work with materials with extremely high viscosity without decreasing the mixing speed.
Some models can be operated remotely for clean rooms or contaminated areas.
Stirrers with one stirring point: internal controller.
MIX 1
Stirring volume: 1 – 10,000 ml
Speed range: 100 – 2,000 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 188(W)x238(D)x38(H) / mm
MIX 1 eco
Stirring volume: 1 – 3,000 ml
Speed range: 120 – 1,400 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 120(W)x120(D)x35(H) / mm
accuMIX 1
Stirring volume: 1 – 3,000 ml
Speed range: 100 – 1,600 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 215(W)x130(D)x40(H) / mm
luMIX
Stirring volume: 1 – 3,000 ml3
Speed range: 100 – 2,000 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 188(W)x238(D)x44(H) / mm
bioMIX 1
Stirring volume: 5 – 5,000 ml
Speed range: 5 – 250 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 188(W)x230(D)x38(H) / mm
MIX 1 XL
Stirring volume: 1 – 40 litres
Speed range: 70 – 2,000 rpm
Operation conditions: -10°C up to 50°C (at 95% humidity)
Dimensions: 225(W)x280(D)x35(H) / mm
maxMIX
Stirring volume: 1 – 150 litres
Speed range: 100 – 1,200 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 265(W)x320(D)x68(H) / mm
Stirrers with one stirring point: external controller.
MIXdrive 1
Stirring volume: 1 – 10,000 ml
Compatible with: MIXcontrol eco, MIX control 20 and MIXcontrol 40
Operation conditions (basic): -10°C up to 50°C in air, up to 50°C submerged in water
Operation conditions (HT): up to 200°C in air, up to 95°C submerged in water
Dimensions: 180(W)x180(D)x38(H) / mm.
MIXdrive 1 eco
Stirring volume: 1 – 3,000 ml
Compatible with: MIXcontrol eco, MIXcontroleco DINrail, MIXcontrol 20 and MIXcontrol 40
Operation conditions (basic): -10°C up to 50°C in air, up to 50°C submerged in water
Operation conditions (HT): up to 200°C in air, up to 95°C submerged in water
Dimensions: 120(W)x120(D)x35(H) / mm
MIXdrive 1 XS
Stirring volume: 1 – 1,000 ml
Compatible with: MIXcontrol eco, MIX controleco DINrail and MIXcontrol 20
Operation conditions (basic): -10°C up to 50°C in air, up to 50°C submerged in water
Operation conditions (HT): up to 200°C in air, up to 95°C submerged in water
Dimensions: 48(W)x48(D)x18(H) / mm
bioMIXdrive 1
Stirring volume: 1 – 3,000 ml
Compatible with: MIXcontrol eco, MIXcontroleco DINrail, MIXcontrol 20 and MIXcontrol 40
Operation conditions (basic): -10°C up to 50°C in air, up to 50°C submerged in water
Operation conditions (HT): up to 200°C in air, up to 95°C submerged in water
Dimensions: 120(W)x120(D)x35(H) / mm
cuvetteMIXdrive 1
Stirring volume: 1 – 5,000 ml
Speed range: 5-250 rpm
Compatible with: bioMIXcontrol, bioMIXcontrol S and bioMIXcontrol 4MS
Operation conditions: -10°C up to 50°C (at 100% humidity), 50°C submerged in water
Dimensions: 180(W)x180(D)x38(H) / mm
MIXdrive 1 XL
Stirring volume: 1 – 40 litres
Compatible with: MIXcontrol XL
Operation conditions: +5°C up to 150°C (at 95% humidity)
Dimensions: 225(W)x225(D)x38(H) / mm
MAXdrive 1
Stirring volume: 1 – 250 litres
Speed range: 100 – 1,200 rpm
Compatible with: MAXcontrol
Operation conditions: -10°C up to 50°C (at 95% humidity)
Dimensions: 260(W)x260(D)x68(H) / mm
FABdrive
Stirring volume: 1 – 1,000 litres
Speed range: 80 – 990 rpm
Compatible with: FABcontrol
Operation conditions: -10°C up to 50°C (at 95% humidity)
Dimensions: 180(W)x180(D)x75(H) / mm
atexMIXdrive
Stirring volume: 1 – 10,000 ml
Compatible with: atexMIXcontrol, atexMIXcontrol cleanroom, MIXcontrol 20
Operation conditions: -10°C up to 40°C in air, up to +40°C in water
Dimensions: 180(W)x180(D)x38(H) / mm
steriMIXdrive
Stirring volume: 1 – 40 litres
Compatible with: steriMIXcontrol
Operation conditions: -10°C up to 150°C (at 100% humidity)
Dimensions: 140(W)x140(D)x32(H) / mm
Stirrers with several stirring points with internal controller
MIX6
Stirring points: 6
Stirring volume / stirring point: 1 – 3,000 ml
Speed range: 100 – 2,000 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 245(W)x425(D)x38(H) / mm
MIX15
Temperature control: PID (LCD)
Material: aluminum alloy with anticorrosive coating
Temperature range: ambient to 200°C
Heating area: 400(L)x300(W) / mm
Dimensions: 400(L)x300(W)x142(H) / mm
MIX15 eco
Stirring points: 15
Stirring volume / stirring point: 1 – 1,500 ml
Speed range: 120 – 1,200 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 245(W)x425(D)x38(H) / mm
MIX 4 MS
Stirring points: 4
Stirring volume / stirring point: 1 – 3,000 ml
Speed range: 100 – 2,000 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 245(W)x425(D)x38(H) / mm
MIX 8 XL
Stirring points: 8
Stirring volume / stirring point: 1 – 3,000 ml
Speed range: 100 – 1,600 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 185(W)x420(D)x38(H) / mm
MIX 12 XL
Stirring points: 12
Stirring volume / stirring point: 1 – 3,000 ml
Speed range: 100 – 1,600 rpm
Operation conditions: -10°C up to 50°C (at 80% humidity)
Dimensions: 275(W)x420(D)x38(H) / mm
Stirrers with multiple stirring points: external controller
MIXdrive 6
Stirring points: 6
Stirring volume / stirring point: 1 – 3,000 ml
Compatible with: MIXcontrol eco, MIXcontrol eco DINrail, MIXcontrol 20 and MIXcontrol 40
Operation conditions (basic): -10°C up to 50°C in air, up to 50°C submerged in water
Operation conditions (HT): up to +200°C in air, up to +95°C submerged in water
Dimensions: 245(W)x375(D)x38(H) / mm
MIXdrive 15
Stirring points: 15
Stirring volume / stirring point: 1 – 3,000 ml
Compatible with: MIXcontrol eco, MIXcontrol eco DINrail, MIXcontrol 20 and MIXcontrol 40
Operation conditions (basic): -10°C up to 50°C in air, up to 50°C submerged in water
Operation conditions (HT): up to +200°C in air, up to +95°C submerged in water
Dimensions: 245(W)x375(D)x38(H) / mm
MIXdrive 60
Stirring points: 60
Stirring volume / stirring point: 500 ml
Compatible with: MIXcontrol eco, MIXcontrol eco DINrail, MIXcontrol 20 and MIXcontrol 40
Operation conditions (basic): -10°C up to 50°C in air, up to 50°C submerged in water
Operation conditions (HT): up to +200°C in air, up to +95°C submerged in water
Dimensions: 245(W)x375(D)x38(H) / mm.
For full specifications click here
bioMIXdrive 2
Stirring points: 2
Stirring volume / stirring point: 5 – 5,000 ml
Speed range: 5 – 250 rpm
Compatible with: bioMIXcontrol, and bioMIXcontrol S
Operation conditions: -10°C up to 50°C (at 100% humidity)
Dimensions: 130(W)x270(D)x38(H) / mm
bioMIXdrive 3
Stirring points: 3
Stirring volume / stirring point: 5 – 5,000 ml
Speed range: 5 – 250 rpm
Compatible with: bioMIXcontrol and bioMIXcontrol S
Operation conditions: -10°C up to 50°C (at 100% humidity).
Dimensions: 130(W)x410(D)x38(H) / mm.
bioMIXdrive 4
Stirring points: 4
Stirring volume / stirring point: 5 – 5,000 ml
Speed range: 5 – 250 rpm
Compatible with: bioMIXcontrol and bioMIXcontrol S
Operation conditions: -10°C up to 50°C (at 100% humidity).
Dimensions: 270(W)x270(D)x38(H) / mm
MIXdrive 6 MTP
Stirring points: 6
Stirring volume / stirring point (max.): 20 ml
Compatible with: MIXcontrol eco and MIXcontrol MTP
Operation conditions: -10°C up to 50°C in air, up to 50°C submerged in water
Dimensions: 140(W)x102(D)x26(H) / mm
MIXdrive 12 MTP
Stirring points: 12
Stirring volume / stirring point (max.): 7 ml
Compatible with: MIXcontrol eco and MIXcontrol MTP
Operation conditions: -10°C up to 50°C in air, up to 50°C submerged in water
Dimensions: 140(W)x102(D)x26(H) / mm
MIXdrive 24 MTP
Stirring points: 24
Stirring volume / stirring point (max.): 3.5 ml
Speed range: 5 – 250 rpm
Compatible with: bioMIXcontrol and bioMIXcontrol S
Operation conditions: -10°C up to 50°C in air, up to 50°C submerged in water
Dimensions: 140(W)x102(D)x26(H) / mm
MIXdrive 96 MTP
Stirring points: 96
Stirring volume / stirring point (max.): 0.5 ml
Speed range: 5 – 250 rpm
Compatible with: bioMIXcontrol and bioMIXcontrol S
Operation conditions: -10°C up to 50°C in air, up to 50°C submerged in water
Dimensions: 140(W)x102(D)x26(H) / mm
SHP magnetic stirrers
SHP Steriltechnik AG offers magnetic stirrers, with one stirring point up to 32 stirring points.
These stirrers are suited for the mixture of liquids from 10 ml to 2,000 ml, at the speed of 100 rpm to 1,350 rpm.
Every model has three options for the housing material according to the application; industrial, laboratory or pharmacology.
All models come with an external controller.

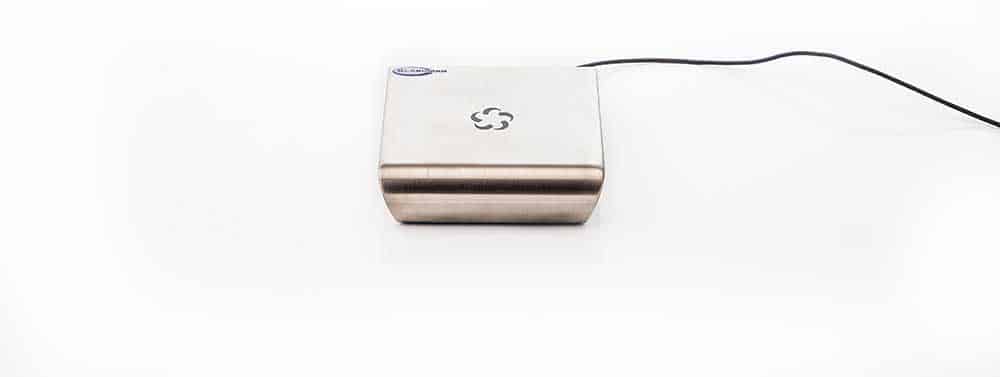

Labomag 1×1
Stirring points: 1
Stirring volume / stirring point (H2O): 1,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 155(W)x38(H)x175(D) / mm
Labomag 1×5
Stirring points: 5
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 392(W)x38(H)x175(D) / mm
Labomag 3×3
Stirring points: 9
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 327(W)x38(H)x305(D) / mm
Labomag 2×5
Stirring points: 10
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 392(W)x38(H)x305(D) / mm
Labomag 2×6
Stirring points: 12
Stirring volume / stirring point (H2O): 1,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 457(W)x38(H)x175(D) / mm
Labomag 2×8
Stirring points: 16
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 587(W)x38(H)x175(D) / mm
Labomag 4×4
Stirring points:16
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 327(W)x38(H)x305(D) / mm
Labomag4x8
Stirring points: 32
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 587(W)x38(H)x305(D) / mm
Labomag 1×3
Stirring points: 3
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 457(W)x38(H)x175(D) / mm

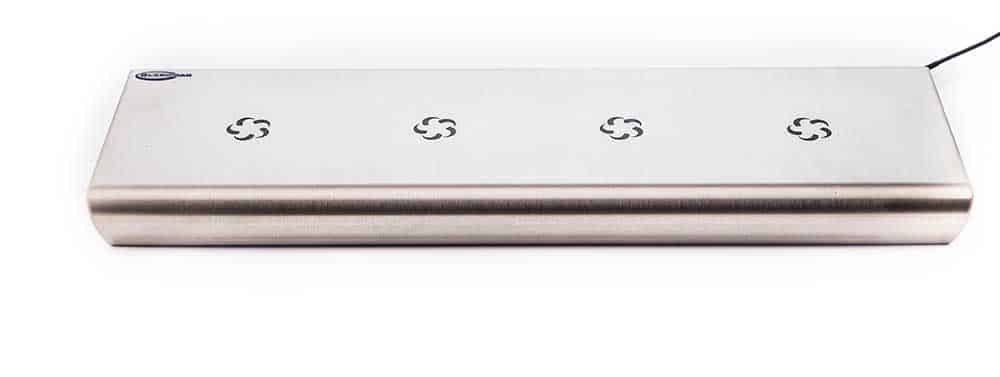

Labomag 1×4
Stirring points: 4
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 587(W)x38(H)x175(D) / mm

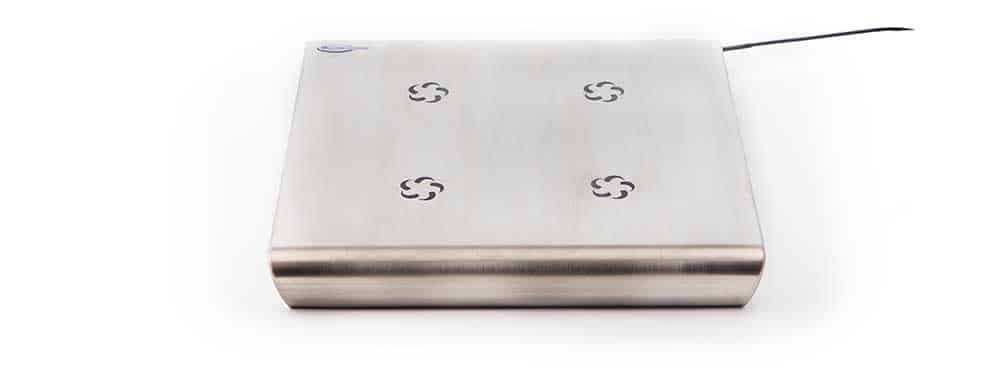

Labomag2x2
Stirring points: 4
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 327(W)x38(H)x305(D) / mm
Labomag 3×3
Stirring points: 9
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 457(W)x38(H)x175(D) / mm
Labomag 2×4
Stirring points: 8
Stirring volume / stirring point (H2O): 10 – 2,000 ml
Speed range: 100 – 1,350 rpm
Dimensions: 587(W)x38(H)x305(D) / mm
